Overview

A simple digital mono delay for the Shmøergh Brain with the charm of ~8-10 bit depth and 22kHz sampling rate. (Only tested with Pico 2 Brain cores.)
Getting started
The lo-fi delay is super simple: you plug in an audio source to In 1 and get the output on Out 1 with a digital delay effect.

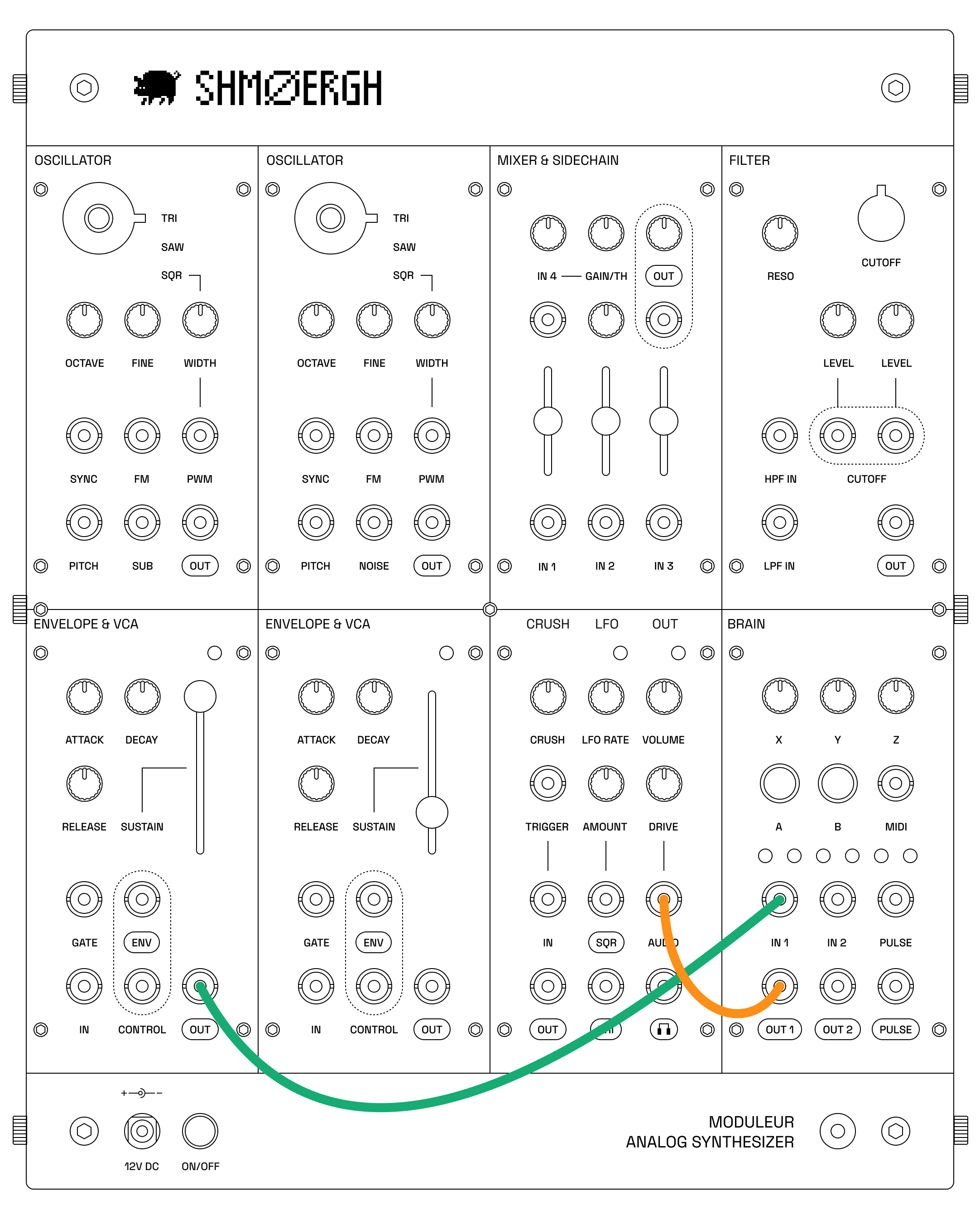

The most common use on the Moduleur would be:
- Patch:
VCA 1 / Out ••• Brain / In 1 - Patch:
Brain / Out ••• Out / Main In
(Of course in this case you'll need an external controller to control the pitch and gate of the Moduleur)

Controls
| Function |
What it does |
| Button A |
Tap tempo |
| Button B |
Freeze |
| Pot X |
Delay time |
| Pot Y |
Feedback |
| Pot Z |
Wet/Dry |
LEDs
The LED on Button A shows the delay time. The LED strip play back a random organic play. Nothing functional but looks pretty cool.
